Posture Management Dashboard (Homepage)

Updated 3 weeks ago by admin

The Dashboard page provides a quick overview of your infrastructure and service posture, presenting essential insights through visual charts based on scan statuses and risk levels.

In the top right corner of the Dashboard page, you can view the Last Finished Scan timestamp. It indicates the date and time when the last completed scan has been started.

Scan Statuses

When the Posture Management service finishes a scan, each control is assigned one of the following scan statuses:

  • Passed – this status is applied when the checked settings match the control requirements.
  • Failed – this status is applied when the checked settings do not match the control requirements.
  • Inactive – this status is applied when the evaluated setting is part of a service or resource that is not currently in use. For example, if a control is configured to check settings within virtual machines, but no virtual machines are installed in the service provider's account, the setting would be marked as inactive.
  • Error – this status is applied when, due to an error, the Posture Management service cannot check the required settings in the service provider account.
The most common type of error is a lack of the required permissions granted to the Posture Management system.

Available Charts

You can review analytics for all active connectors collectively or focus on detailed metrics for each connector.

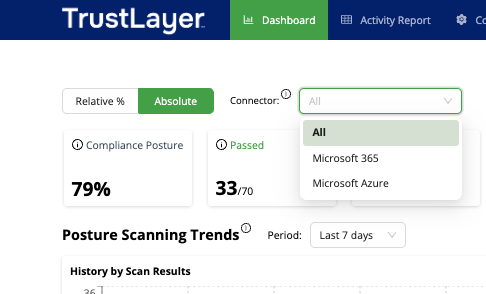

To select a desired connector, click the Connector drop-down list.

Connectors drop-down

If you see an orange triangle icon near a connector name, it means that this connector is integrated but disabled. You can review the historical data for its scans; however, this connector is not being scanned now.

Chart data is available for a maximum of 90 days.

All charts are divided into two categories: Posture Scanning Trends and Details per Scan.

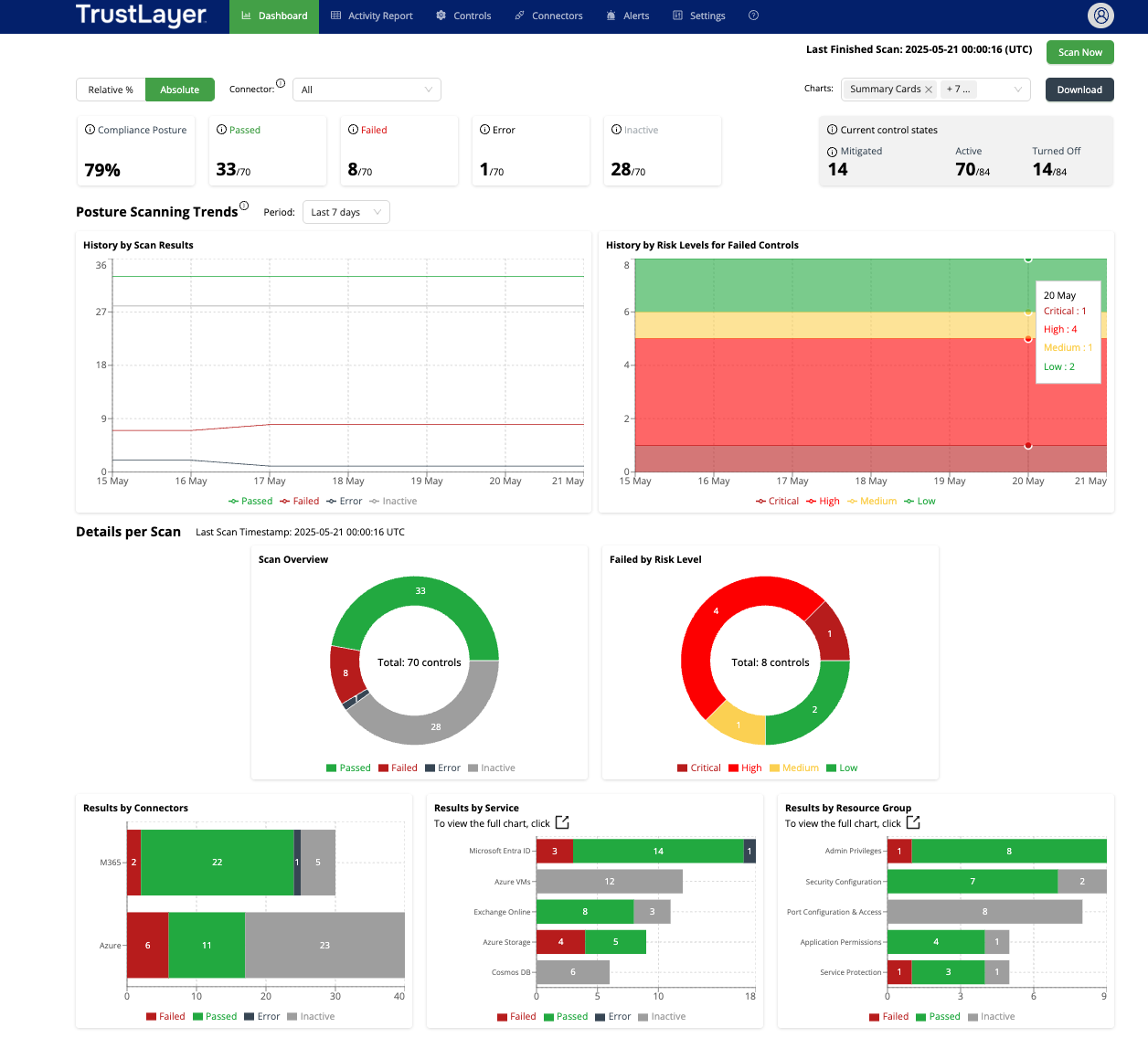

Dashboard

Posture Scanning Trends

The Posture Scanning Trends charts display historical data across different periods. The available periods are:

  • Today
  • Last 7 days
  • Last 30 days
  • Last 90 days
The Today option includes all scans completed on the current day, whereas other options display only the final scan for each day within the selected period.

The following charts are available in the Posture Scanning Trends section:

  • History by Scan Results – this chart displays historical data based on scan statuses.
  • History by Risk Levels – this chart displays historical data based on the risk levels for controls with the Failed scan status.

Details per Scan

The Details per Scan charts display results from a single scan.

The most recent scan is shown by default. However, you can select a specific date from either the History by Scan Results or History by Risk Levels charts to view statistics for the last scan of that particular date.

The following charts are available in the Details per Scan section:

  • Scan Overview – this chart displays a general summary of the scan results organized by status.
  • Failed by Risk Level – this chart displays an overview of controls with a Failed status organized by risk levels.
  • Results by Connectors – this chart displays the scan results organized by connectors and scan statuses.
  • Results by Resource Group – this chart displays the scan results organized by resource groups and scan statuses.
To review filtered results, click a section of the chart in the Activity Report.
