WS - Deploying USS Mac Agent via Microsoft Intune

Updated 8 hours ago by admin

IIntune Deployment: TrustLayer Root CA + USS Agent (macOS)

Step 1 — Deploy the TrustLayer Root CA via Intune

  1. Download the Root CA certificate from your TrustLayer tenant portal. The certificate will download as a .pem file.
  2. You will need to convert the file from .pem to .cer before uploading to Intune.

From a Mac — run in Terminal:

openssl x509 -inform PEM -in "Default MAC Agent Profile.pem" -outform DER -out TrustLayer.cer

From Windows — run in PowerShell:

$pem = Get-Content "Default MAC Agent Profile.pem" -Raw

$pem = $pem -replace "-----BEGIN CERTIFICATE-----", "" -replace "-----END CERTIFICATE-----", "" -replace "\s", ""

[System.IO.File]::WriteAllBytes("TrustLayer.cer", [System.Convert]::FromBase64String($pem))

Note: Replace the filename in the commands above with the actual filename of your downloaded .pem certificate.
  1. In Intune → Devices → macOS → Configuration → Create → New policy:
  • Platform: macOS
  • Profile type: Templates → Trusted certificate
  1. Click Create.
  2. Give it a name — e.g. USS Agent CA deployment for MacOS.

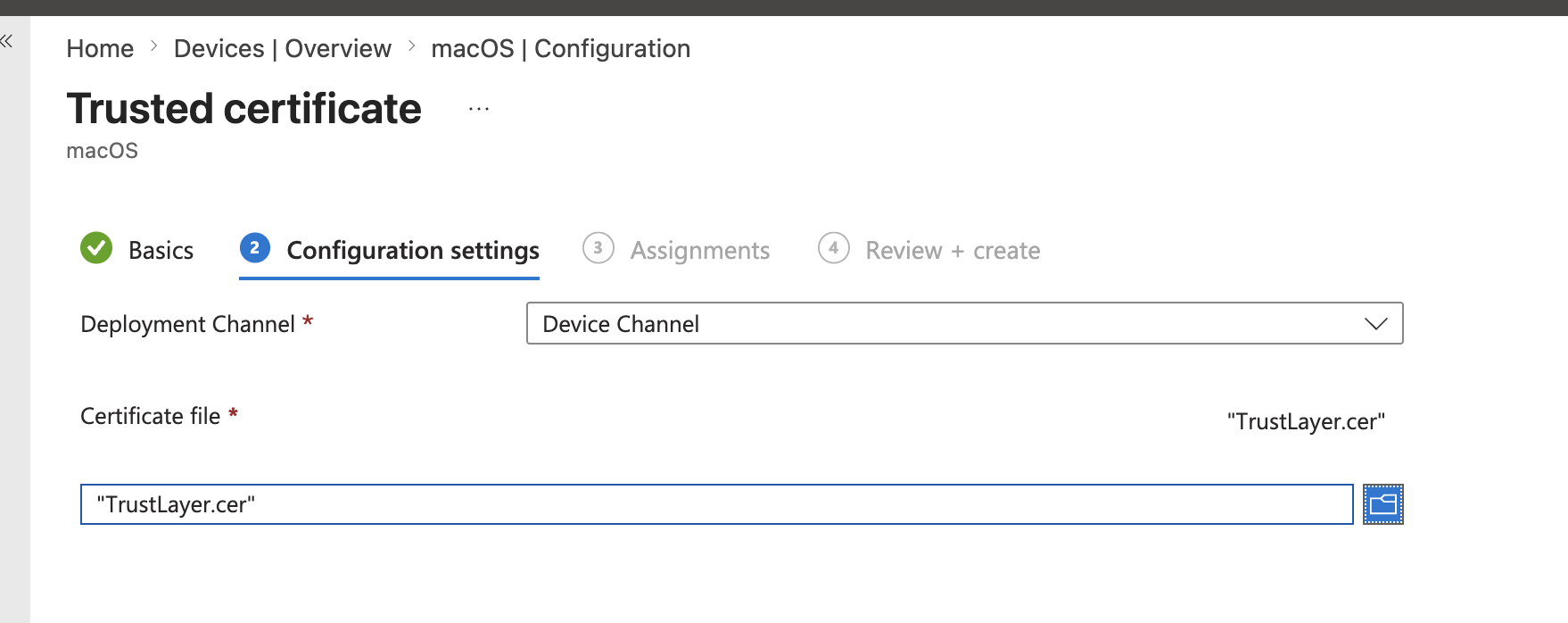

  3. Upload the converted TrustLayer.cer file.

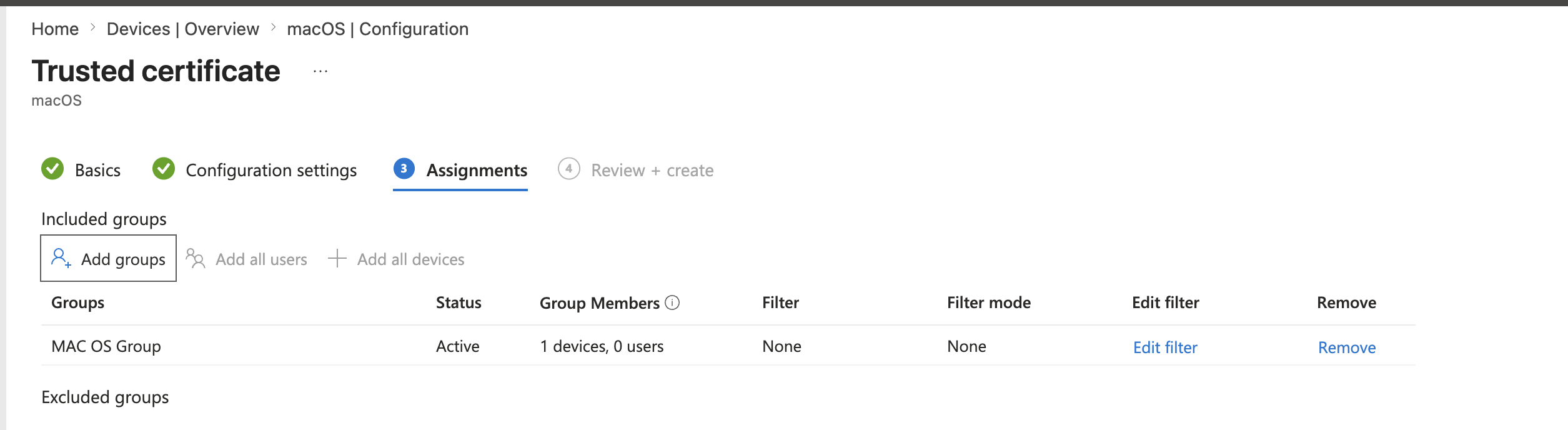

  1. Assign to your target device/user group.
  2. Set this profile to deploy before the agent script (you can enforce ordering via assignment filters or just allow time for it to apply — typically 15 min).

Deploy the USS Agent via Intune Shell Script

Prerequisites

  • The Mac must be enrolled in Intune via Company Portal.
  • The TrustLayer Root CA profile from Step 1 must be applied before running this script.

Create the Shell Script

  1. Copy the script below into a text editor, update the AGENT_EMAIL and AGENT_PASS values with your USS admin account credentials, and save it as install_uss_agent.sh.
    Note: The AGENT_EMAIL and AGENT_PASS are the credentials of a USS administrator account with Mac OS X - Agent - Provisioning permissions. It is best practice to create a dedicated provisioning account in the USS dashboard with a limited role containing only this permission.
    #!/bin/bash

    # -------------------------------------------------------
    # USS Agent Install Script for macOS - Intune Deployment
    # Update AGENT_EMAIL and AGENT_PASS before uploading
    # -------------------------------------------------------

    AGENT_EMAIL="your@email.com"        # Replace with your USS admin account email
    AGENT_PASS="yourpassword"           # Replace with your USS admin account password
    DMG_URL="https://downloads.clouduss.com/macosx/4.4.5.8193/UssAgent%204.4.5.8193.dmg"
    DMG_PATH="/tmp/UssAgent.dmg"
    MOUNT_POINT="/tmp/UssAgentMount"
    LOG="/Library/Logs/UssAgentInstall.log"

    exec >> "$LOG" 2>&1
    echo "=== USS Agent Install Started: $(date) ==="

    echo "Downloading USS Agent DMG..."
    curl -L --retry 3 --retry-delay 5 -o "$DMG_PATH" "$DMG_URL"

    echo "Mounting DMG..."
    mkdir -p "$MOUNT_POINT"
    hdiutil attach "$DMG_PATH" -mountpoint "$MOUNT_POINT" -nobrowse -quiet

    INSTALLER="$MOUNT_POINT/UssAgent Installer.app/Contents/MacOS/UssAgent Installer"

    if [ ! -f "$INSTALLER" ]; then
        echo "ERROR: Installer not found at expected path."
        hdiutil detach "$MOUNT_POINT" -quiet || true
        exit 1
    fi

    echo "Running USS Agent installer..."
    "$INSTALLER" -q -u "$AGENT_EMAIL" -p "$AGENT_PASS"
    INSTALL_EXIT=$?

    echo "Cleaning up..."
    hdiutil detach "$MOUNT_POINT" -quiet || true
    rm -f "$DMG_PATH"

    if [ $INSTALL_EXIT -eq 0 ]; then
        echo "=== USS Agent Install SUCCEEDED: $(date) ==="
    else
        echo "=== USS Agent Install FAILED (exit code: $INSTALL_EXIT): $(date) ==="
        exit $INSTALL_EXIT
    fi
    The script performs the following steps automatically:
    • Downloads the USS Agent DMG from CloudUSS
    • Mounts the DMG
    • Runs the installer silently with the provided credentials
    • Cleans up temporary files
    • Logs output to /Library/Logs/UssAgentInstall.log
  2. In Intune → Devices → macOS → Shell scripts → Add.

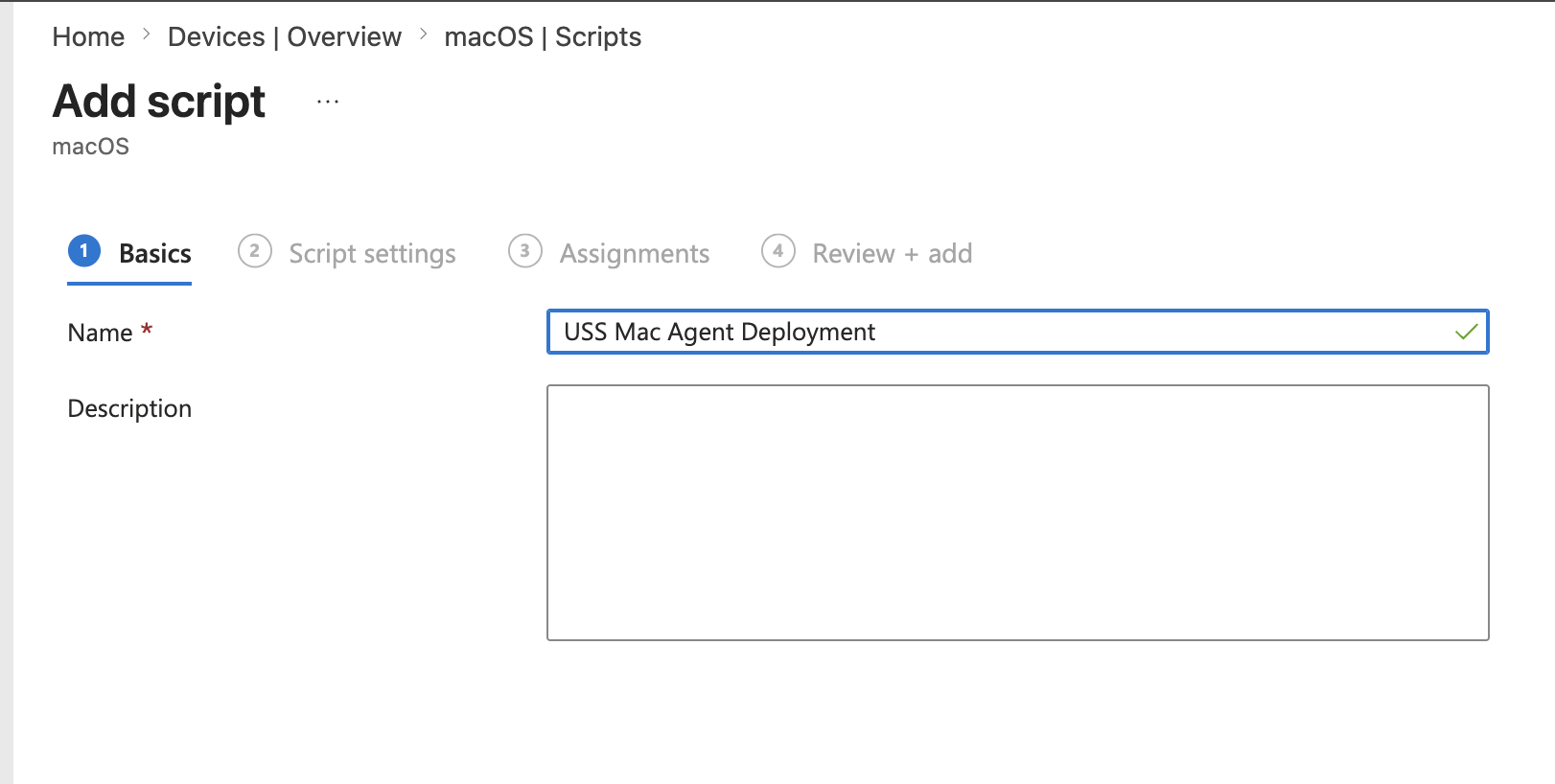

  3. Give it a name — e.g. USS Mac Agent Deployment.
  4. Upload the install_uss_agent.sh script file.
  5. Configure the following settings:

    Setting

    Value

    Run script as signed-in user

    No

    Hide script notifications on devices

    Yes

    Script frequency

    Not configured

    Max number of times to retry if script fails

    3

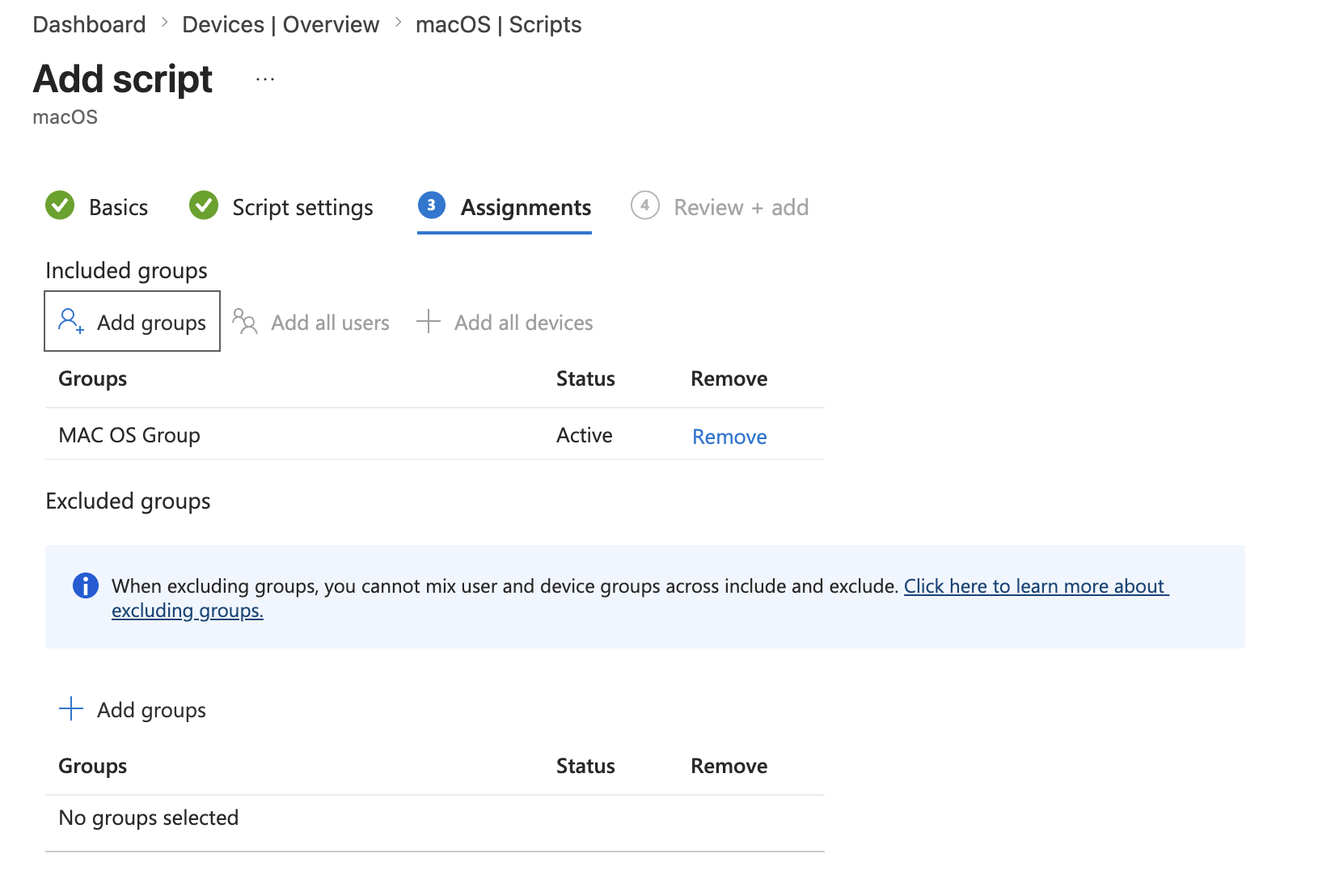

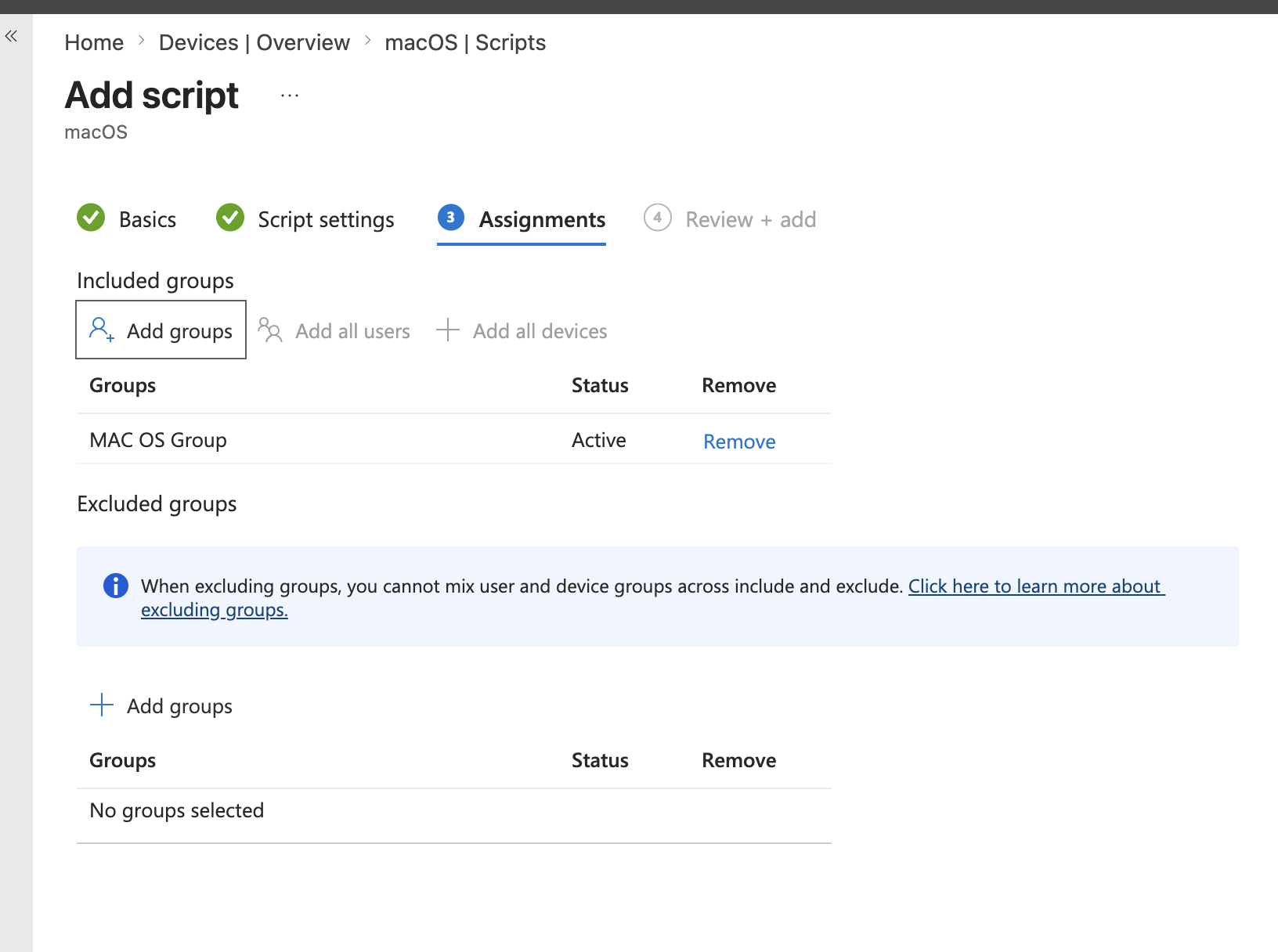

  6. Click Next and assign to your target device/user group — e.g. MAC OS Group.

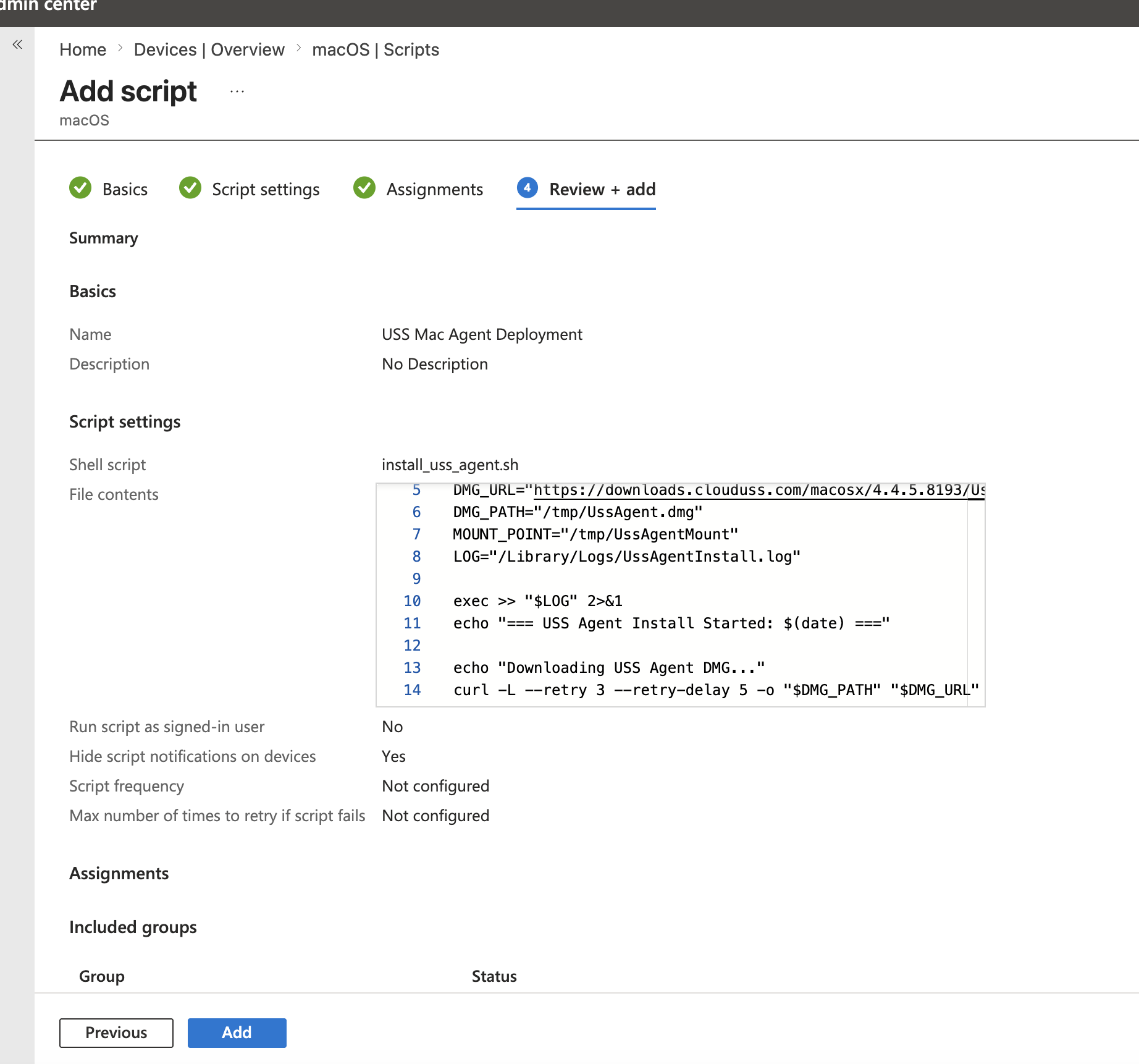

  1. Click Review + create to save.

Trigger the Script

After saving, the script will run automatically within approximately 15–30 minutes. To speed this up:

  1. On the Mac, open Company Portal → Help → Sync.
  2. Wait a few minutes, then check the status in Intune → Devices → macOS → Shell scripts → [script name] → Device status.

Verify Installation

To confirm the agent is installed and running, open a browser on the Mac and attempt to visit a blocked category site. You should see the TrustLayer Access Blocked page.

You can also check the install log on the Mac via Terminal:

cat /Library/Logs/UssAgentInstall.log
Note: The USS Agent runs as a background service — it will not appear as a visible app in the Applications folder. This is expected behaviour.

Step 3 — Uninstalling the USS Agent via Intune (When Required)

To uninstall the agent from a device, a separate uninstall script is used.

  1. Copy the script below into a text editor, update the UNINSTALL_PASS value with the tamper-proof password from your Agent Configuration Profile, and save it as uninstall_uss_agent.sh.
    Important: The UNINSTALL_PASS is the tamper-proof password set in the Agent Configuration Profile in the USS dashboard — it is unique per customer and is separate from the USS admin account credentials used during installation. Ensure you update this value before deploying.
    #!/bin/bash

       # -------------------------------------------------------
       # USS Agent Uninstall Script for macOS - Intune Deployment
       # Update UNINSTALL_PASS before uploading
       # -------------------------------------------------------

       # The uninstall password is the tamper-proof admin password set in the
       # Agent Configuration Profile in the USS dashboard. It is unique per customer.
       UNINSTALL_PASS="yourpassword"       # Replace with your tamper-proof admin password
       DMG_URL="https://downloads.clouduss.com/macosx/4.4.5.8193/UssAgent%204.4.5.8193.dmg"
       DMG_PATH="/tmp/UssAgent.dmg"
       MOUNT_POINT="/tmp/UssAgentMount"
       LOG="/Library/Logs/UssAgentUninstall.log"

       exec >> "$LOG" 2>&1
       echo "=== USS Agent Uninstall Started: $(date) ==="

       hdiutil detach "$MOUNT_POINT" -force 2>/dev/null || true

       echo "Downloading USS Agent DMG..."
       curl -L --retry 3 --retry-delay 5 -o "$DMG_PATH" "$DMG_URL"

       echo "Mounting DMG..."
       mkdir -p "$MOUNT_POINT"
       hdiutil attach "$DMG_PATH" -mountpoint "$MOUNT_POINT" -nobrowse -quiet

       UNINSTALLER="$MOUNT_POINT/UssAgent Uninstaller.app/Contents/MacOS/UssAgent Uninstaller"

       if [ ! -f "$UNINSTALLER" ]; then
           echo "ERROR: Uninstaller not found at expected path."
           hdiutil detach "$MOUNT_POINT" -quiet || true
           exit 1
       fi

       echo "Running USS Agent uninstaller..."
       "$UNINSTALLER" -s -a "$UNINSTALL_PASS"
       UNINSTALL_EXIT=$?

       echo "Cleaning up..."
       hdiutil detach "$MOUNT_POINT" -quiet || true
       rm -f "$DMG_PATH"

       if [ $UNINSTALL_EXIT -eq 0 ]; then
           echo "=== USS Agent Uninstall SUCCEEDED: $(date) ==="
       else
           echo "=== USS Agent Uninstall FAILED (exit code: $UNINSTALL_EXIT): $(date) ==="
           exit $UNINSTALL_EXIT
       fi
  2. In Intune → Devices → macOS → Shell scripts → Add.

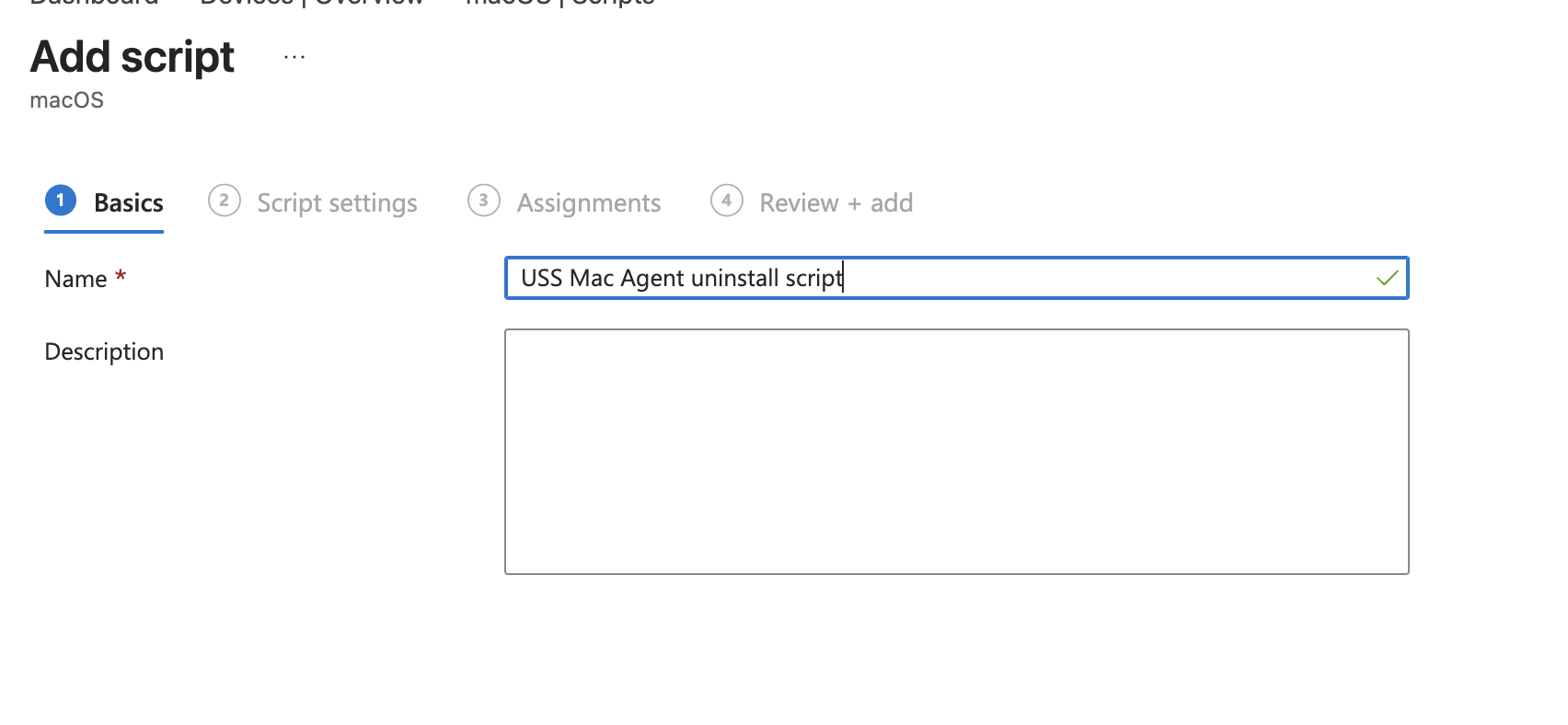

  3. Give it a name — e.g. USS Mac Agent Uninstall.
  4. Upload the uninstall_uss_agent.sh script file.

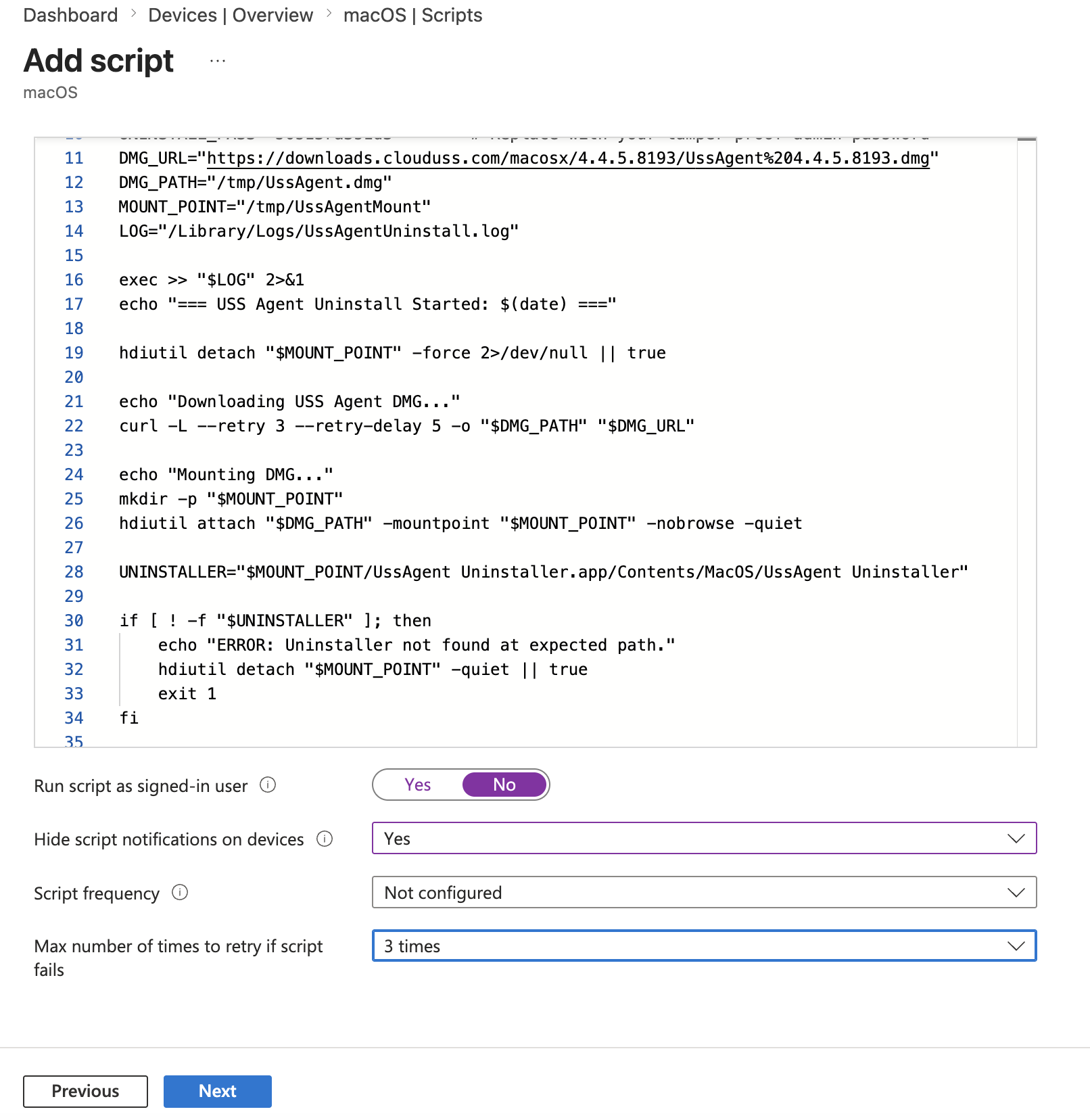

  5. Configure the following settings:

    Setting

    Value

    Run script as signed-in user

    No

    Hide script notifications on devices

    Yes

    Script frequency

    Not configured

    Max number of times to retry if script fails

    3

  6. Assign only to the device(s) you wish to uninstall from.
  7. Click Review + create to save.
Note: Do not assign the uninstall script to the same group as the install script, or both will run on the same devices.

Troubleshooting

Issue

Resolution

Certificate profile shows 0 devices

Check the device/user is a member of the assigned group in Entra ID

Script shows 0 devices in Device status

Ensure the device is in the assigned group; force a sync via Company Portal

Install log does not appear after 30 minutes

Check group assignment; try forcing sync via Company Portal

TrustLayer block page not appearing

Verify the install log shows SUCCEEDED; check the USS dashboard for the registered device

Uninstaller prompts for password

Ensure the -a parameter in the script contains the correct tamper-proof password from the Agent Configuration Profile
