Bypassing Office 365

Updated 1 hour ago by admin

By Microsoft's own admission, Office 365 can be problematic when trying to access Office 365 services through Filtering Software/Proxies. For this, they have a provided a list of URLs/IPs that need to be bypassed in order for the services to work correctly. This list can be found on this Microsoft KB.

If you're looking for instructions on how to configure Office 365 with Email Security, see this article.

As there are hundreds of URLs needing to be bypassed, we have also provided a condensed list in a USS friendly format. The URLs below act as wildcards, so will bypass entire domains, and not the exact subdomains provided by Microsoft. You can use this at your own discretion, but it offers a far smaller list for you to work with and with the same effectiveness of the list provided by Microsoft.

Newer Cloud USS accounts will have a number of System-level Bypasses provided by default, including Bypasses for Office 365. The manual configuration detailed below is only necessary for older accounts, which do not have these System-level Bypasses.

To begin, log in to the console and go to Browse ⟶ Categories ⟶ Bypass. Click Add Category, give it a sensible name like "Office 365" and click the green +.

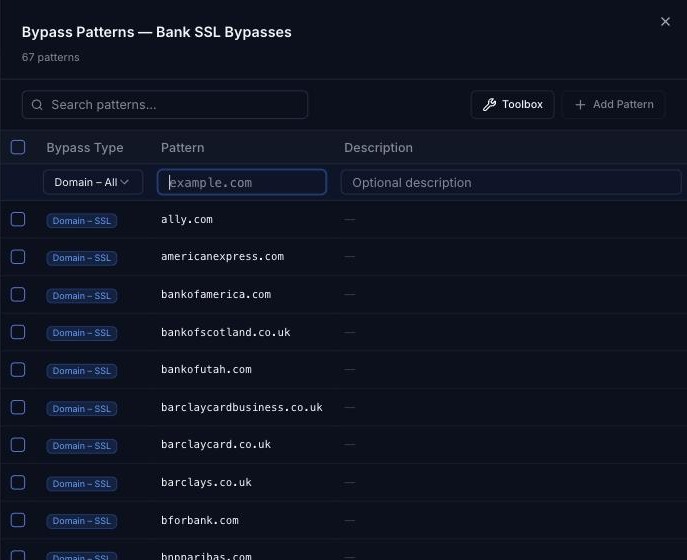

Click the settings icon on the new category's row. For each URL in the list below, click Add Pattern, set the Bypass Type to Domain – All (bypass destination domain completely), enter the URL as the Pattern and click the green +.

You'll need to add each URL in this list as a separate Pattern. Make sure you add each of them under the same Category ("Office 365").
office365.com
cloudappsecurity.com
onmicrosoft.com
office.net
office.com
microsoft.com
microsoftonline.com
live.com
azure.net
gfx.ms
onestore.ms
msecnd.net
outlookgroups.ms
linkedin.com
msocdn.com
live.net

Microsoft lists the following URLs as optional:

cloudapp.net
windows.net
helpshift.com
localytics.com
facebook.net
oaspapps.com
uservoice.com
akadns.net
hockeyapp.net
windowsazure.com
visualstudio.net
sharepointonline.com
staffhub.ms
azureedge.net
onedrive.com

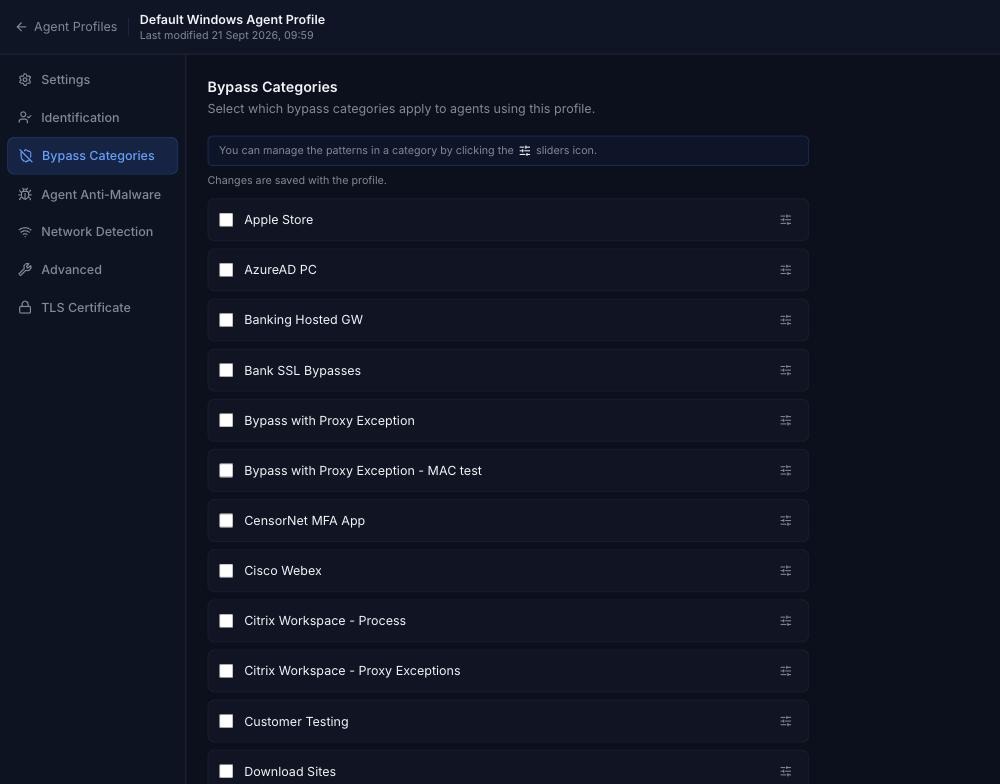

Once you've added all of these bypasses, they need to be enabled. Go to Browse ⟶ Agent Configuration and open an agent profile. Select Bypass Categories, enable the category you created above, and click Apply Changes.

You can propagate these changes instantly by logging into your USS Gateway, navigating to System then click the Update Config button. On USS Agent, you can do this by right-clicking the USS Agent icon and hitting Update Config.
